Mechanical protection for steel pipes

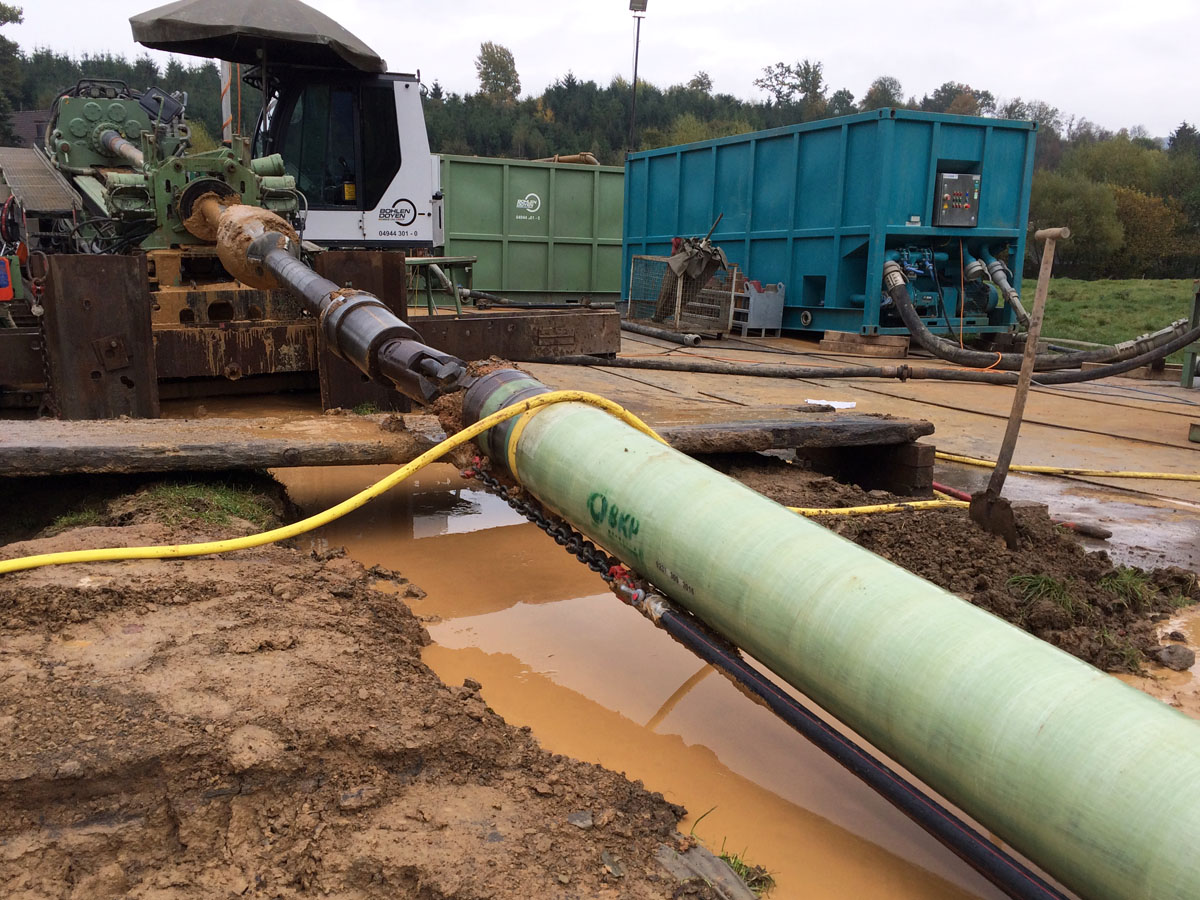

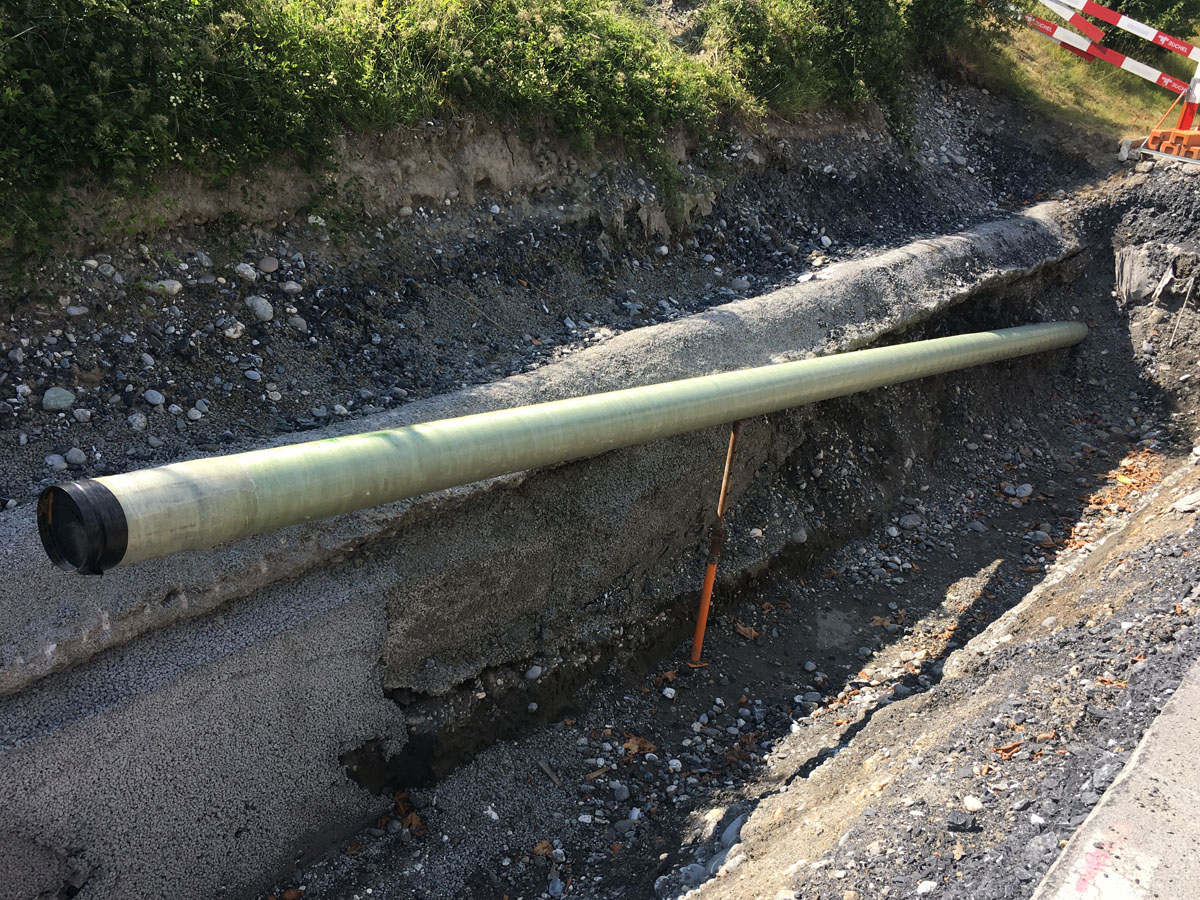

[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1553177925948{margin-top: 30px !important;}”][vc_column][ultimate_heading main_heading=”GRP Pipe Coating: Advantages” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Glass fibre reinforced plastic (GRP) is an extremely resilient material, which BKP applies on the PE coated pipes as casing protection. This additional protective coat is used in particular for the pipe jacking and horizontal drilling method (HDD). The GRP coating applied in the factory is convincingly effective due to the use of polystyrene-free resins and the fast curing by means of controlled UV light.[/vc_column_text][vc_row_inner css=”.vc_custom_1553693774494{margin-top: 30px !important;}”][vc_column_inner width=”1/3″]

[/vc_column_inner][vc_column_inner width=”1/3″][/vc_column_inner][vc_column_inner width=”1/3″][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1553177925948{margin-top: 30px !important;}”][vc_column][/vc_column][/vc_row][vc_row css=”.vc_custom_1559133362650{margin-top: 30px !important;}”][vc_column offset=”vc_hidden-xs”][vc_empty_space height=”30px”][vc_tabs interval=”0″ title_size=”h5″][vc_tab title=”Technical data” tab_id=”356efa01-9575-8″][vc_row_inner equal_height=”yes” gap=”20″][vc_column_inner width=”1/3″ css=”.vc_custom_1551272741960{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}”][ultimate_heading main_heading=”Material” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]The around five millimetre thick GRP pipe coating of the BKP Berolina is made of light-curing resins and is applied on the PE sheathed pipe. Combined with the high-strength glass fibres, the corrosion protection system protects against mechanical damage while the pipe is pulled in.[/vc_column_text][/vc_column_inner][vc_column_inner width=”2/3″ css=”.vc_custom_1551272730352{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}”][ultimate_heading main_heading=”Mechanical characteristics” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Thickness of the Berolina protection system: >= 5 mm
Dielectric strength: >= 25 000 V

Laminate weight per unit area: > 9400 g/m²
Laminate density: > 1700 kg/m³

Total glass fraction: > 60 %
Total glass weight per unit area: > 5600 g/m²
Glass distribution: > 3 : 1 tan:ax

Shear strength GRP/PE (according to GW340): ≥ 100 N/cm²
Hardness (Barcol): > 45 scale division
Polystyrene emissions: 0 ppm
Volume shrinkage (laminate): < 1 %[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_empty_space height=”50px”][/vc_tab][vc_tab title=”Downloads” tab_id=”ef1c96ce-509e-5″][vc_row_inner equal_height=”yes” gap=”20″][vc_column_inner width=”1/4″ css=”.vc_custom_1552917477170{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}”][ultimate_heading main_heading=”Brochure” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_single_image image=”62277″ img_size=”full”][vc_empty_space][ultimate_icon_list icon_size=”16″ icon_margin=”10″][ultimate_icon_list_item icon=”Defaults-file-pdf-o” icon_color=””]English[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-file-pdf-o” icon_color=””]German[/ultimate_icon_list_item][/ultimate_icon_list][/vc_column_inner][/vc_row_inner][vc_empty_space height=”50px”][/vc_tab][vc_tab title=”References” tab_id=”1552919340630-4-3″][vc_row_inner equal_height=”yes” gap=”20″][vc_column_inner width=”1/2″ css=”.vc_custom_1552919499293{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}”][ultimate_heading main_heading=”Major projects to date” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Pipe jacking and horizontal drilling method (HDD)

• STEGAL (Sachsen-Thüringen-Erdgas-Leitung)
• NEL (Nordeuropäische Erdgasleitung)
• OPAL (Ostsee-Pipeline-Anbindungsleitung)
• JAGAL (Jamal-Gas-Anbindungs-Leitung)
• WEDAL (Westdeutschland-Anbindungsleitung)

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_empty_space height=”50px”][/vc_tab][vc_tab title=”Contact” tab_id=”1551271673406-4-3″][vc_row_inner][vc_column_inner]

[/vc_column_inner][/vc_row_inner][vc_empty_space height=”50px”][/vc_tab][vc_tab title=”Structure of the GRP pipe coating” tab_id=”1560520448855-4-4″][vc_row_inner equal_height=”yes” gap=”20″][vc_column_inner width=”1/2″ css=”.vc_custom_1560520509104{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}”][ult_hotspot main_img=”id^60232|url^http://bkp-berolina.de.w0197d78.kasserver.com/wp-content/uploads/2019/06/Aufbau-GFK-Rohrummantelung.png|caption^null|alt^Aufbau GFK-Rohrummantelung|title^Aufbau GFK-Rohrummantelung|description^null”][ult_hotspot_items icon=”Defaults-check” icon_size=”20″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”18.05059342157273,74.67948717948718″]1. Steel pipe[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”20″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”32.822418212890625,65.5448717948718″]2. PE/PP coating[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”20″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”51.61705925351098,55.92948717948718″]3. GRP pipe coating[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”20″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”69.71726190476191,31.73076923076923″]4. GRP skids[/ult_hotspot_items][/ult_hotspot][bsf-info-box icon=”icomoon-font-awesome-14×14-mouse-pointer” icon_size=”32″ icon_color=”” pos=”left”]Hover / Click on the icons to display the individual components.[/bsf-info-box][/vc_column_inner][vc_column_inner width=”1/2″][/vc_column_inner][/vc_row_inner][vc_empty_space height=”50px”][/vc_tab][/vc_tabs][/vc_column][/vc_row][vc_row][vc_column offset=”vc_hidden-lg vc_hidden-md vc_hidden-sm”][vc_empty_space height=”30px”][vc_accordion active_tab=”false” title_size=”h5″][vc_accordion_tab title=”Technical data”][ultimate_heading main_heading=”Material” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]The around five millimetre thick GRP pipe coating of the BKP Berolina is made of light-curing resins and is applied on the PE sheathed pipe. Combined with the high-strength glass fibres, the corrosion protection system protects against mechanical damage while the pipe is pulled in.[/vc_column_text][vc_empty_space height=”16px”][ultimate_heading main_heading=”Mechanical characteristics” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Thickness of the Berolina protection system: >= 5 mm
Dielectric strength: >= 25 000 V

Laminate weight per unit area: > 9400 g/m²
Laminate density: > 1700 kg/m³

Total glass fraction: > 60 %
Total glass weight per unit area: > 5600 g/m²
Glass distribution: > 3 : 1 tan:ax

Hardness (Barcol): > 45 scale division
Polystyrene emissions: 0 ppm
Volume shrinkage (laminate): < 1 %[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title=”Brochure”][vc_single_image image=”62277″ img_size=”full”][vc_empty_space height=”16px”][ultimate_icon_list icon_size=”16″ icon_margin=”10″][ultimate_icon_list_item icon=”Defaults-file-pdf-o” icon_color=””]German[/ultimate_icon_list_item][/ultimate_icon_list][/vc_accordion_tab][vc_accordion_tab title=”References”][ultimate_heading main_heading=”Previous major projects” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Pipe jacking and horizontal drilling method (HDD)

• STEGAL (Sachsen-Thüringen-Erdgas-Leitung)
• NEL (Nordeuropäische Erdgasleitung)
• OPAL (Ostsee-Pipeline-Anbindungsleitung)
• JAGAL (Jamal-Gas-Anbindungs-Leitung)
• WEDAL (Westdeutschland-Anbindungsleitung)

[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title=”Contact”]

[/vc_accordion_tab][vc_accordion_tab title=”Structure of the GRP pipe coating”][bsf-info-box icon=”icomoon-font-awesome-14×14-mouse-pointer” icon_size=”32″ icon_color=”” pos=”left”]Hover / Click on the icons to display the individual components.[/bsf-info-box][ult_hotspot main_img=”id^60232|url^http://bkp-berolina.de.w0197d78.kasserver.com/wp-content/uploads/2019/06/Aufbau-GFK-Rohrummantelung.png|caption^null|alt^Aufbau GFK-Rohrummantelung|title^Aufbau GFK-Rohrummantelung|description^null”][ult_hotspot_items icon=”Defaults-check” icon_size=”10″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”18.05059342157273,74.67948717948718″]1. Steel pipe[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”10″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”32.822418212890625,65.5448717948718″]2. PE/PP coating[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”10″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”51.61705925351098,55.92948717948718″]3. GRP pipe coating[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-check” icon_size=”10″ icon_color=”#ffffff” icon_style=”circle” icon_color_bg=”#073b4c” tooltip_custom_color=”#ffffff” tooltip_custom_bg_color=”#0099a1″ tooltip_position=”right” tooltip_font_style=”font-weight:bold;” tooltip_continuous_animation=”on” hotspot_position=”69.71726190476191,31.73076923076923″]4. GRP skids[/ult_hotspot_items][/ult_hotspot][/vc_accordion_tab][/vc_accordion][vc_empty_space height=”50px”][/vc_column][/vc_row][vc_row gap=”20″ equal_height=”yes”][vc_column width=”1/2″ css=”.vc_custom_1560770867714{background-image: url(https://liner25-test2.bkp-berolina.de/wp-content/uploads/2019/03/GFK-Rohrummantelung-Einzug.jpg?id=57949) !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}” offset=”vc_hidden-xs”][/vc_column][vc_column width=”1/2″ css=”.vc_custom_1560770884104{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}” offset=”vc_hidden-xs”][ultimate_heading main_heading=”The protective reinforcement made of glass fibre reinforced plastic” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Due to the enormous wear resistance, which conventional polyethylene/polypropylene (PE/PP) coatings do not have, damage is avoided when pulling in. Follow-up costs due to subsequent report, or the replacement of a damaged pipe are not necessary. The GRP coating applied mechanically in the factory is subjected to the strictest quality requirements.[/vc_column_text][vc_empty_space][ultimate_heading main_heading=”Maximum mechanical abrasive strength for trenchless pipe jacking” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]The GRP pipe coating is applied on the PE coated pipe using a special method. This is a glass fibre reinforced plastic, which is cured in the factory by means of UV light.[/vc_column_text][/vc_column][/vc_row][vc_row gap=”20″ equal_height=”yes”][vc_column width=”1/2″ css=”.vc_custom_1560770889181{padding-top: 30px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;background-color: #f7f7f7 !important;}” offset=”vc_hidden-xs”][ultimate_heading main_heading=”GRP pipe coating: A success story” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]BKP developed the glass fibre reinforced pipe coating in the mid-1990s, working with a renowned gas grid operator. Since then the objective has been to protect the corrosion protection applied to the pipe by means of a high-strength GRP coating. The extremely heavy-duty coating made of glass fibres and polystyrene-free resin ensures maximum mechanical abrasion resistance for trenchless pipe installation (pulling in of pipes). The high-strength material is cured in a controlled way by UV light without the use of curing agents (hardeners) and accelerators.[/vc_column_text][vc_empty_space][vc_column_text]Use of GRP skids

Information on the GRP weld coating[/vc_column_text][/vc_column][vc_column width=”1/2″ css=”.vc_custom_1560770893948{background-image: url(https://liner25-test2.bkp-berolina.de/wp-content/uploads/2019/05/GFK-ummantelter-Gasrohrstrang-DN-1400-900-GFK-Rohrummantelung.jpg?id=59888) !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}” offset=”vc_hidden-xs”][/vc_column][/vc_row][vc_row][vc_column offset=”vc_hidden-lg vc_hidden-md vc_hidden-sm”][vc_single_image image=”57949″ img_size=”full”][ultimate_heading main_heading=”The protective reinforcement made of glass fibre reinforced plastic” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]Due to the enormous wear resistance, which conventional polyethylene/polypropylene (PE/PP) coatings do not have, damage is avoided when pulling in. Follow-up costs due to subsequent report, or the replacement of a damaged pipe are not necessary. The GRP coating applied mechanically in the factory is subjected to the strictest quality requirements.[/vc_column_text][vc_empty_space height=”16px”][ultimate_heading main_heading=”Maximum mechanical abrasive strength for trenchless pipe jacking” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]The GRP pipe coating is applied on the PE coated pipe using a special method. This is a glass fibre reinforced plastic, which is cured in the factory by means of UV light.[/vc_column_text][vc_empty_space][vc_single_image image=”59888″ img_size=”full”][ultimate_heading main_heading=”GRP pipe casing: A success story” spacer=”line_only” spacer_position=”bottom” line_height=”3″ line_color=”#0099a1″ main_heading_style=”font-weight:bold;” main_heading_font_size=”desktop:22px;” main_heading_line_height=”desktop:32px;” line_width=”70″ main_heading_margin=”margin-top:20px;margin-bottom:5px;” spacer_margin=”margin-bottom:30px;”][/ultimate_heading][vc_column_text]BKP developed the glass fibre reinforced pipe coating in the mid-1990s, working with a renowned gas grid operator. Since then the objective has been to protect the corrosion protection applied to the pipe by means of a high-strength GRP coating. The extremely heavy-duty coating made of glass fibres and polystyrene-free resin ensures maximum mechanical abrasion resistance for trenchless pipe installation (pulling in of pipes). The high-strength material is cured in a controlled way by UV light without the use of curing agents (hardeners) and accelerators.[/vc_column_text][vc_empty_space height=”16px”][vc_column_text]Use of GRP skids

Information on the GRP weld coating[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1553177892606{margin-top: 50px !important;margin-bottom: 50px !important;}”][vc_column]
